WCU for METIS
Worked as Optics and AIV engineer in Prof. Lucas Labadie’s group for the Warm Calibration Unit (WCU) of the Mid-Infrared ELT Imager and Spectrograph (METIS) from June 2020 to January 2023 at the 1st Physics institute of the University of Cologne, Cologne, Germany. Below is the lists of tasks i was involved in:-
- Optical Tolerance analysis of the relay optics of the WCU.
- Optical tolerance analysis of the Focal plane imaging optics and the Pupil plane imaging optics of the WCU.
- Simulating the effect of gravity and temperature on the optical performance of the WCU.

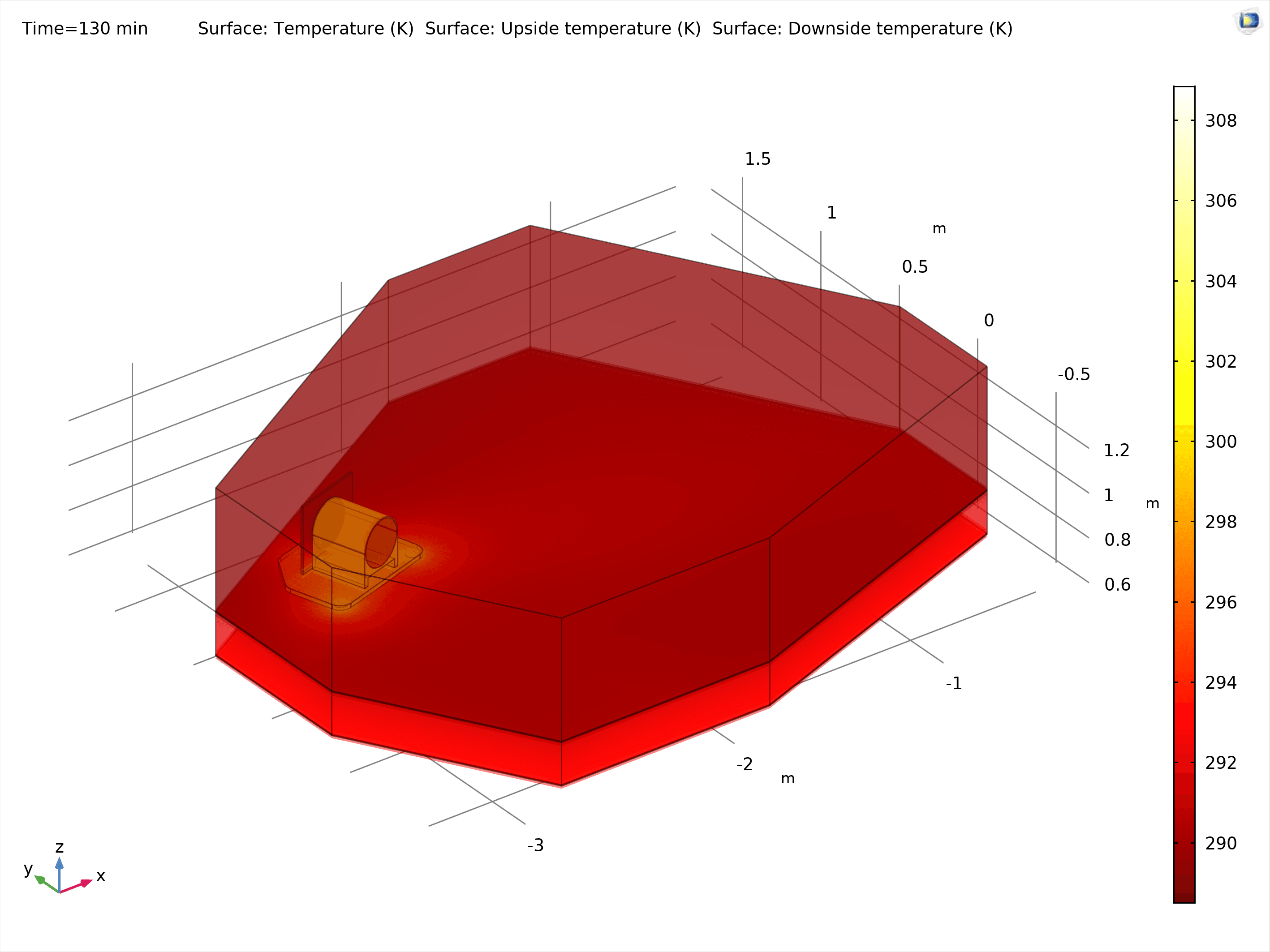

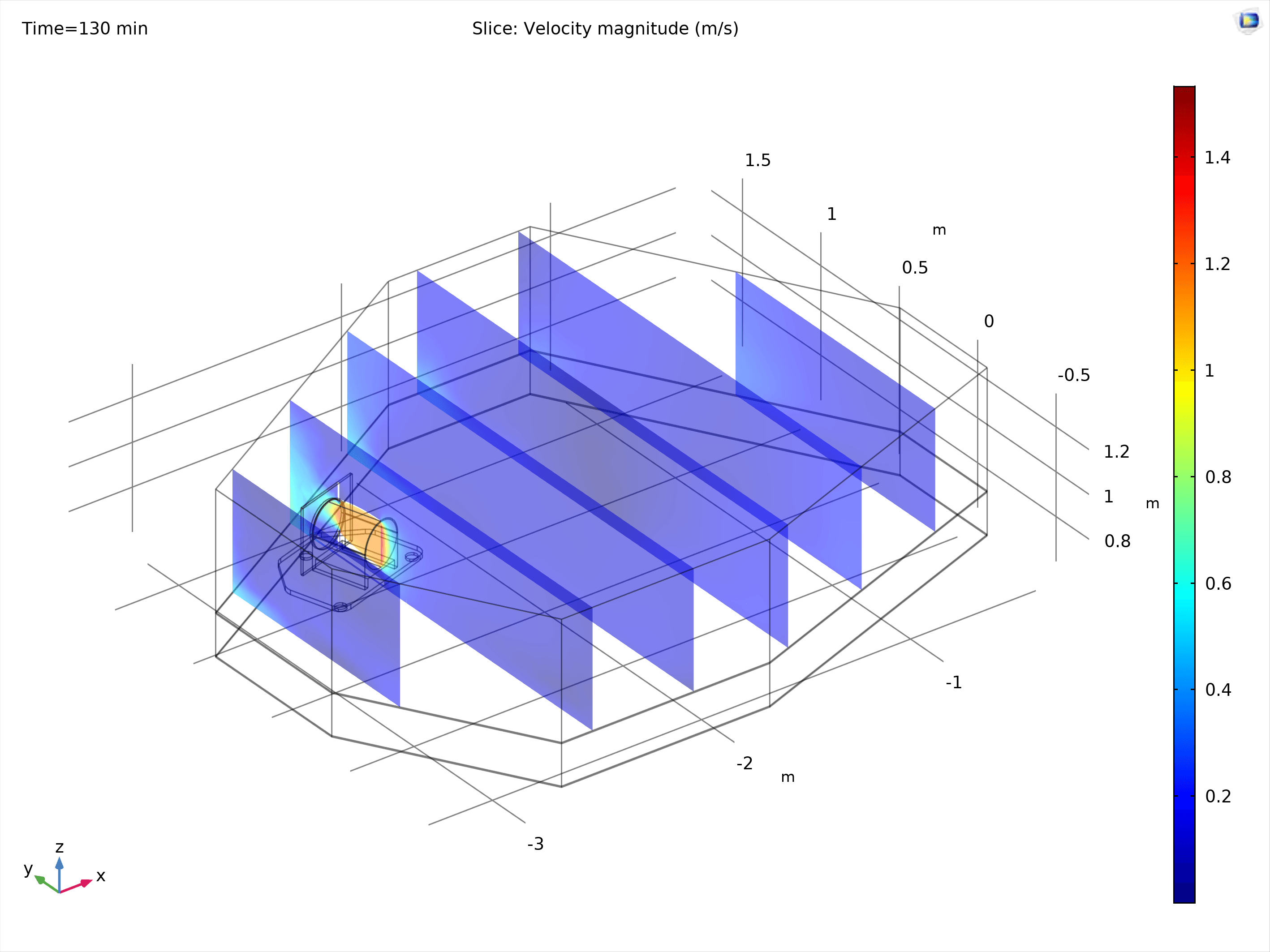

- Thermal analysis of the WCU. Analyzing the effect of heat generated by the Blackbody on the temperature of the WCU.

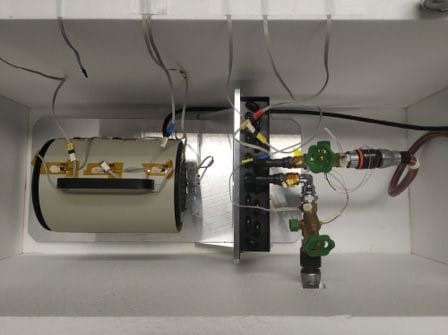

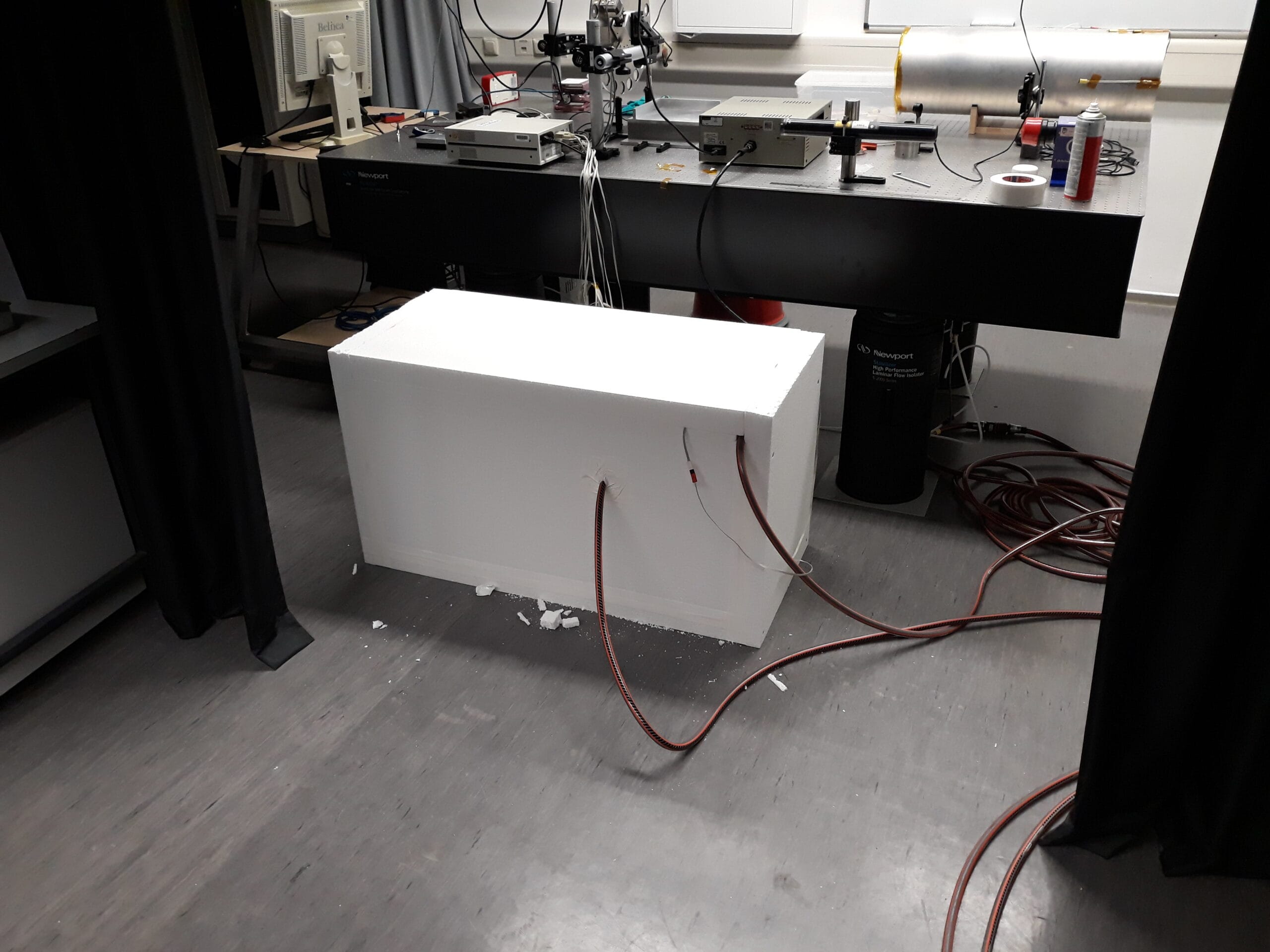

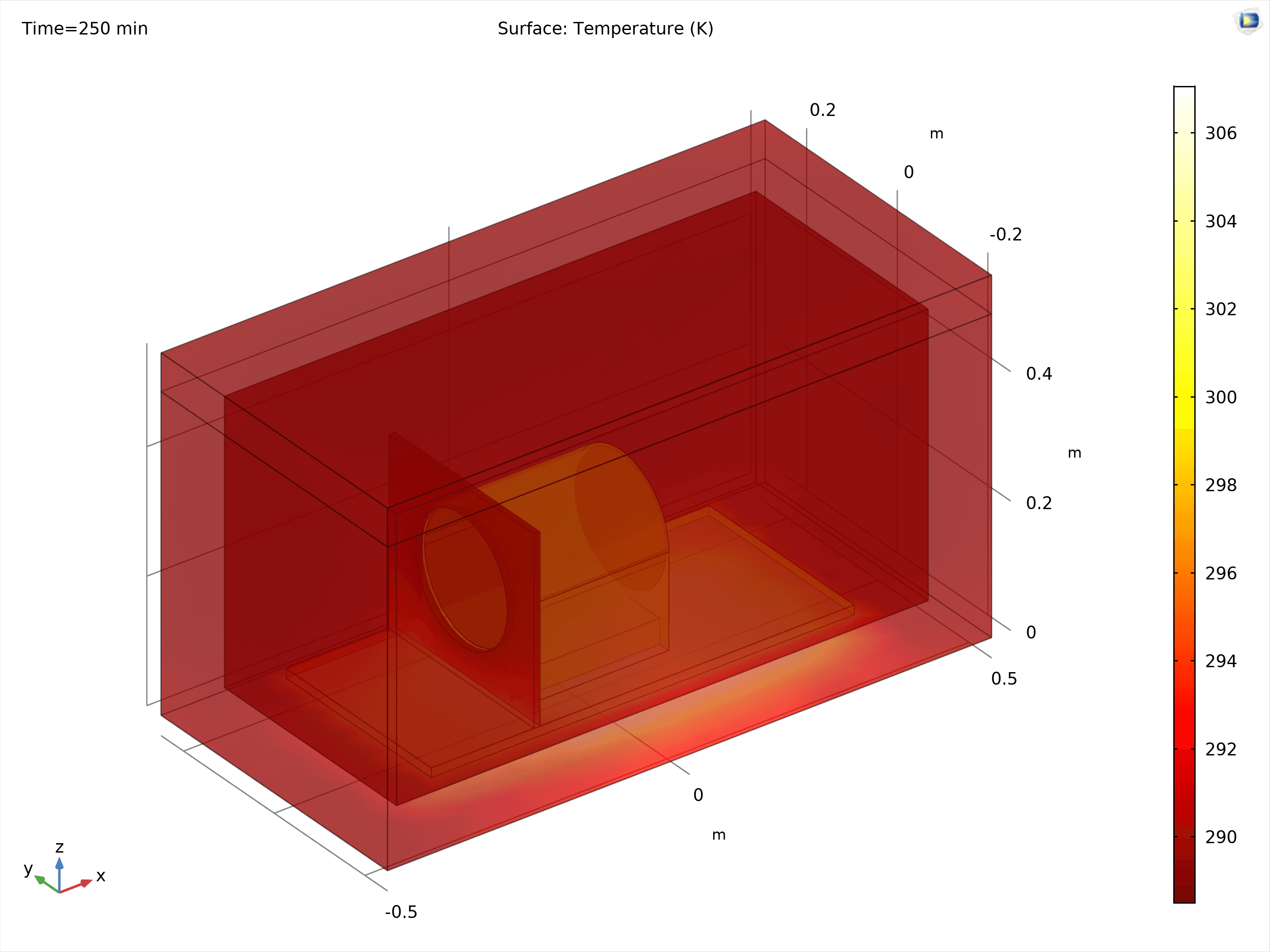

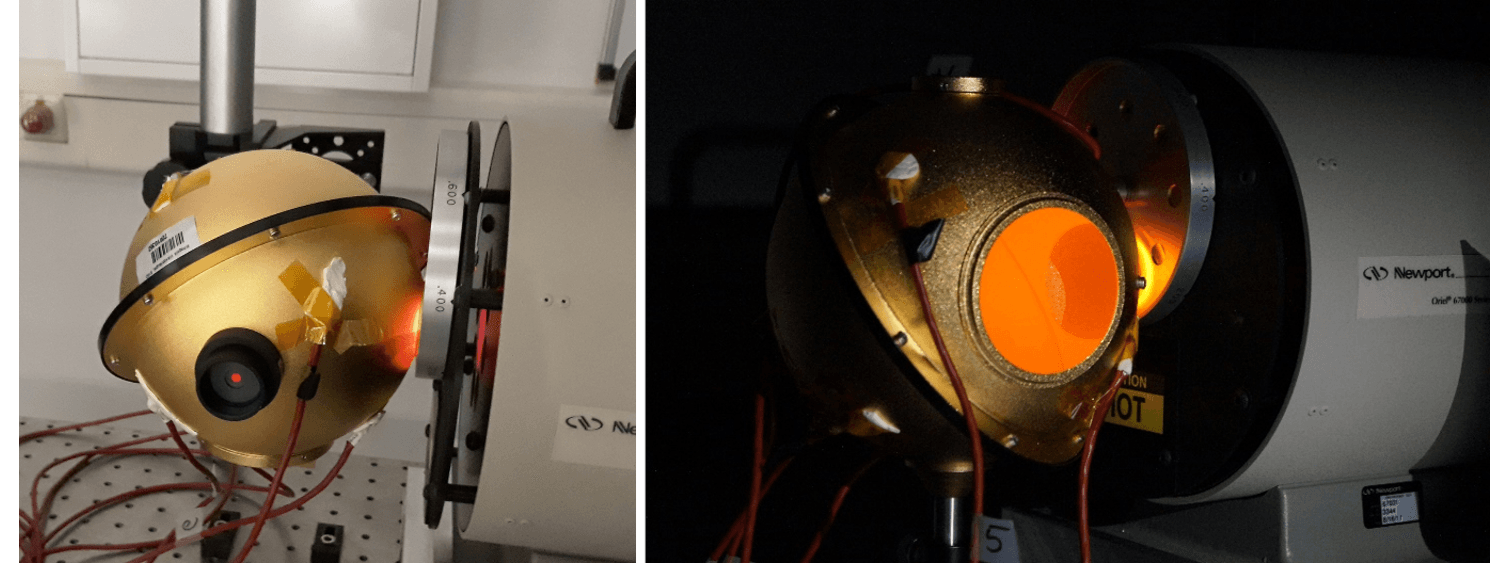

- Lab experiments for understanding the effect of heat generated by blackbody on temperature of the WCU.
- Analyzing the effect of temperature on the lateral position of the focal plane of the instrument.
- Analyzing the effect of stress (induced because of mounting the mirror inside the mirror mount) on the WFE of the WCU.

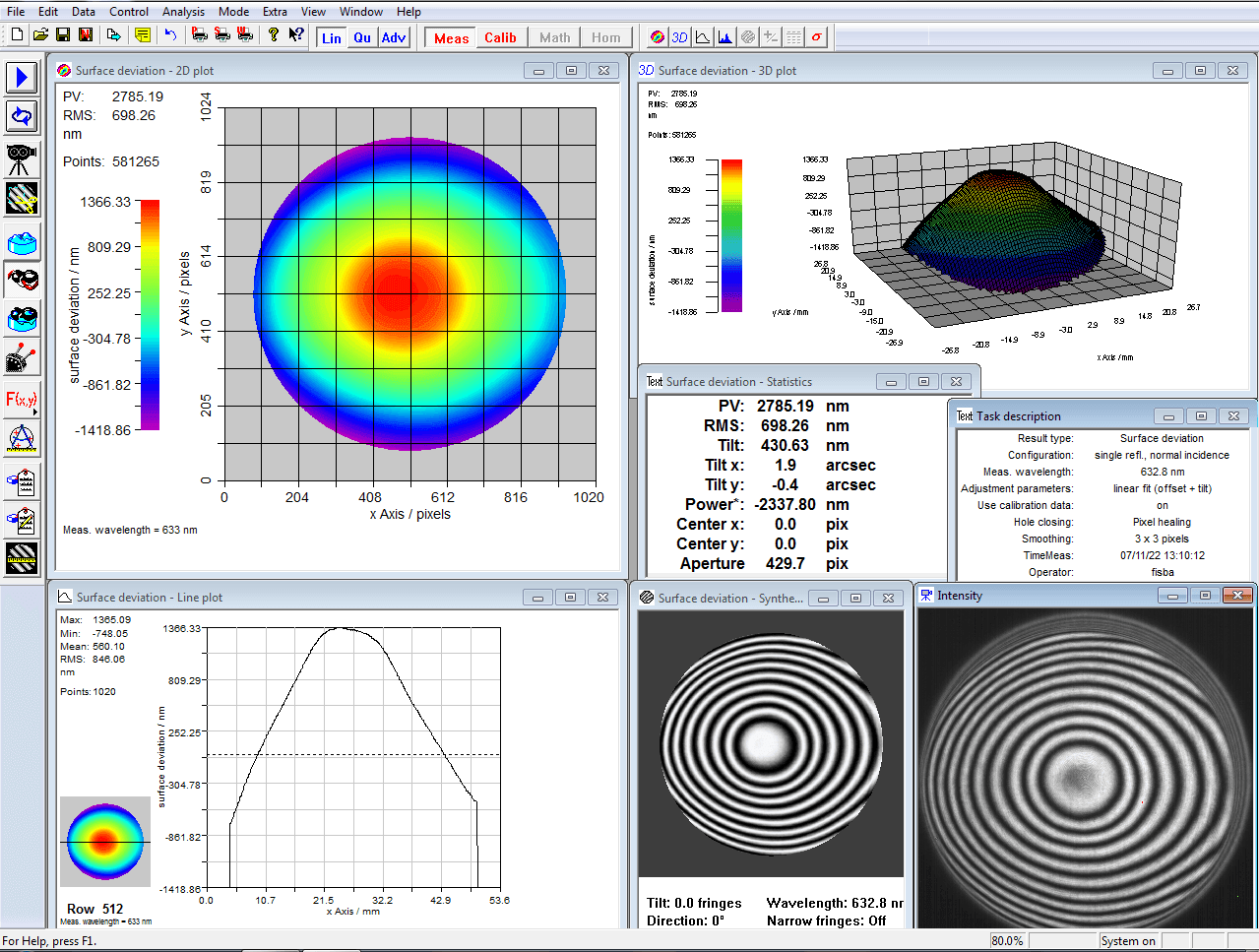

- Simulation and Lab experiments related to the AIV activities (experiments with FISBA interferometer for measuring the WFE of an optical system consisting more than one optical surface.)

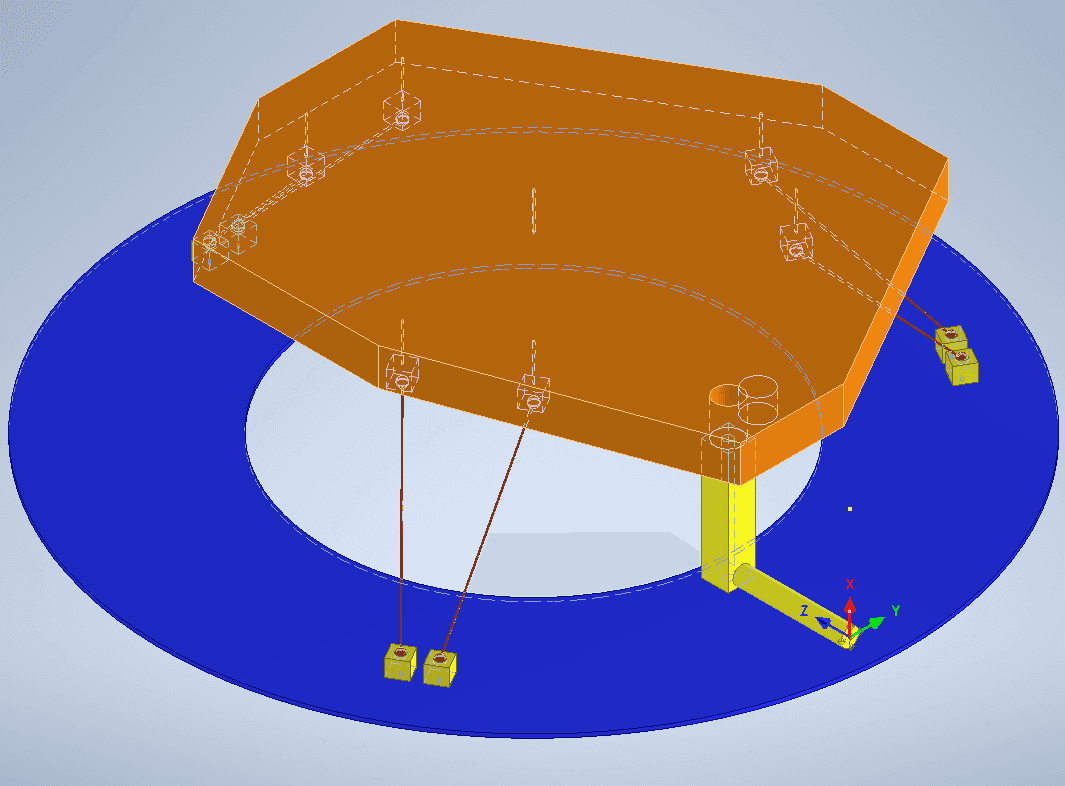

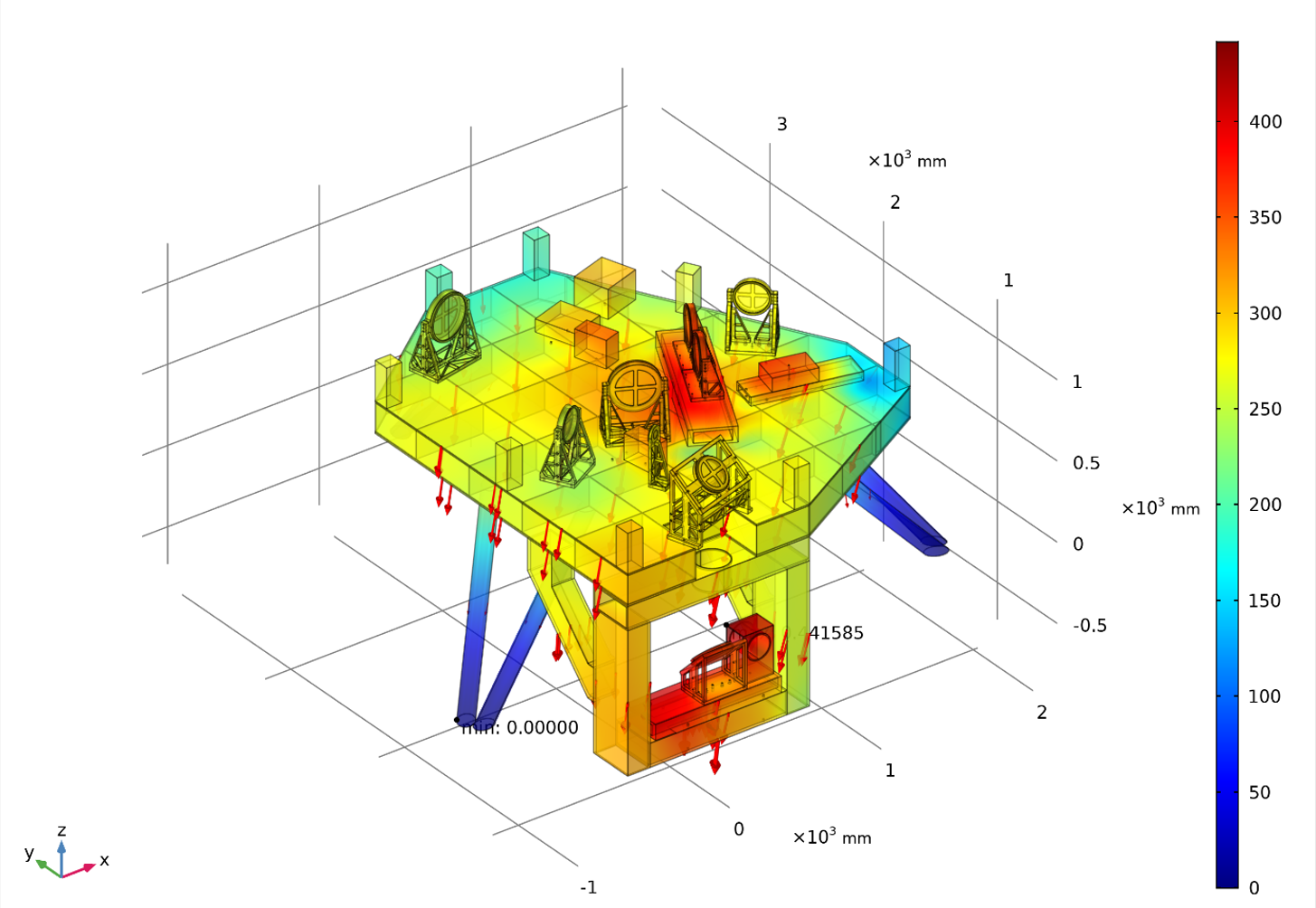

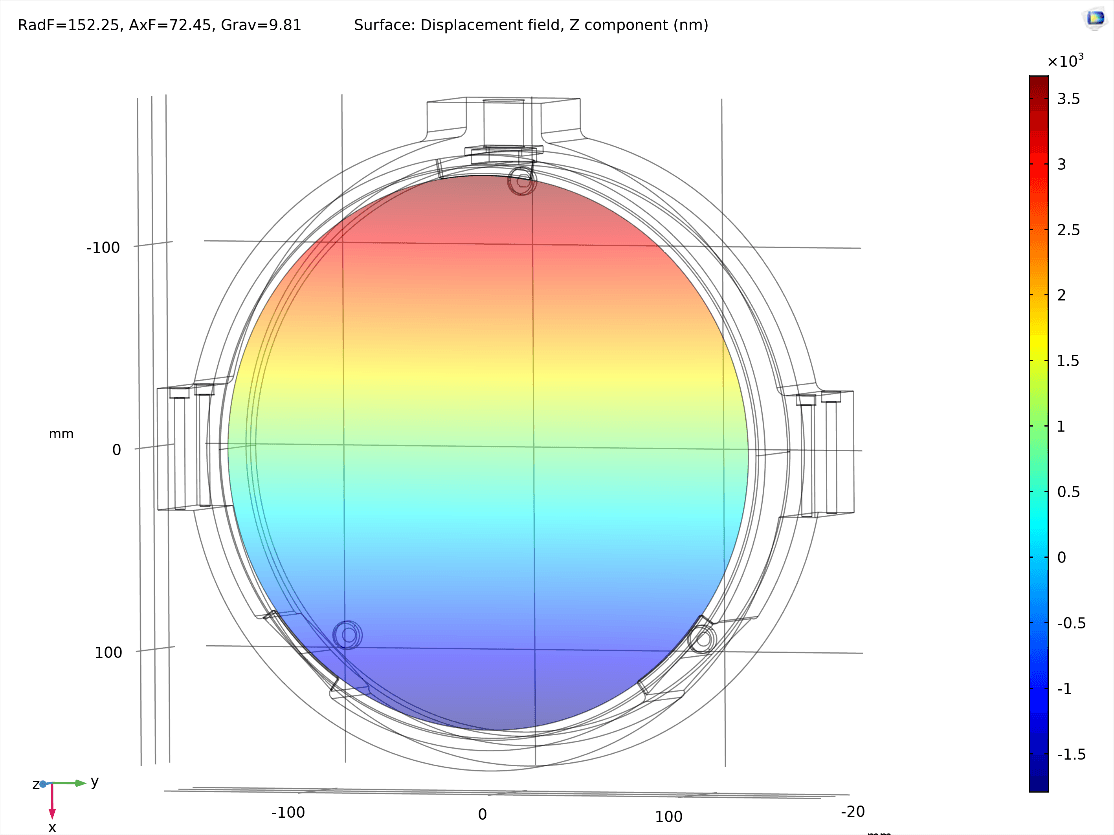

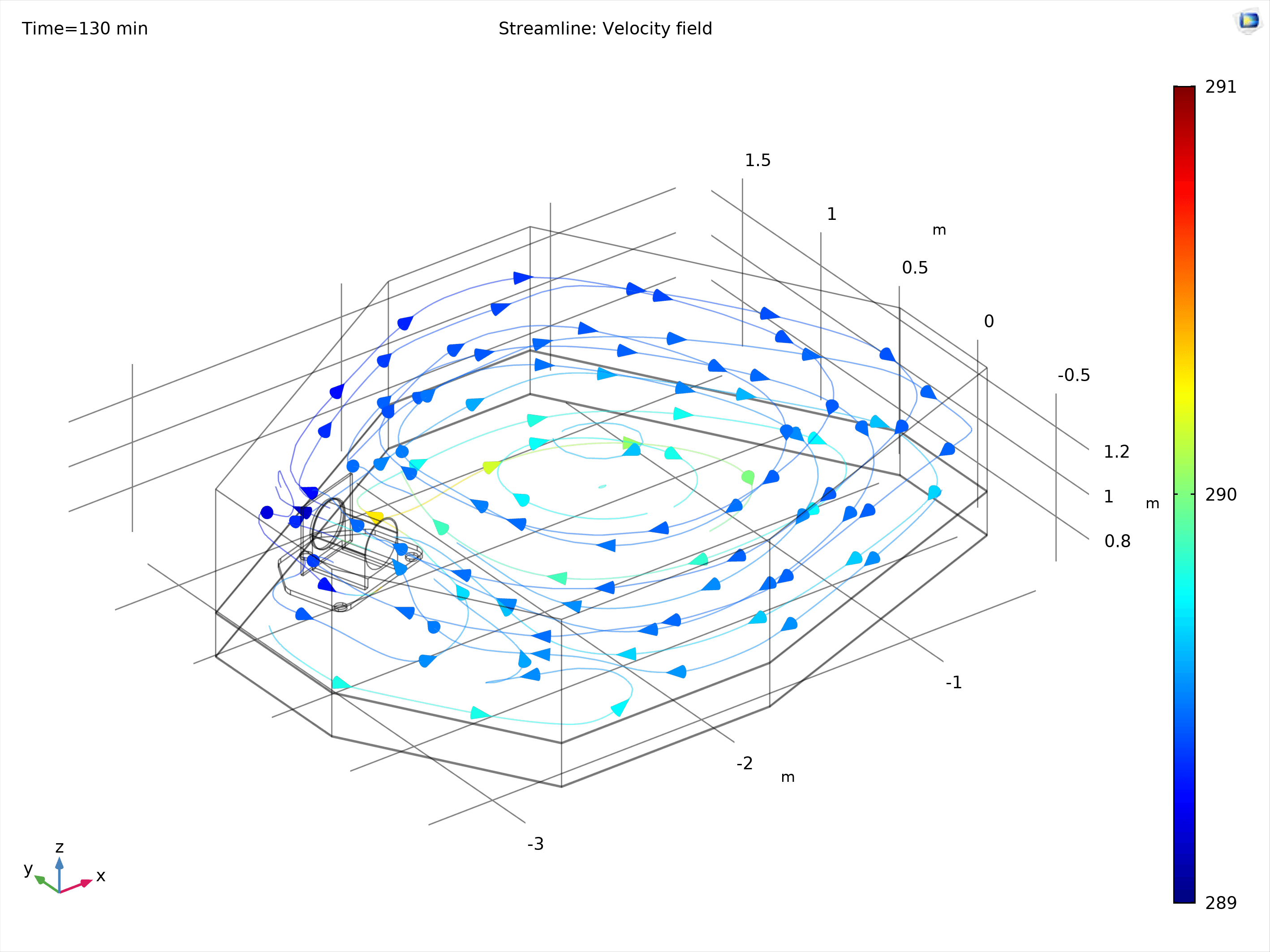

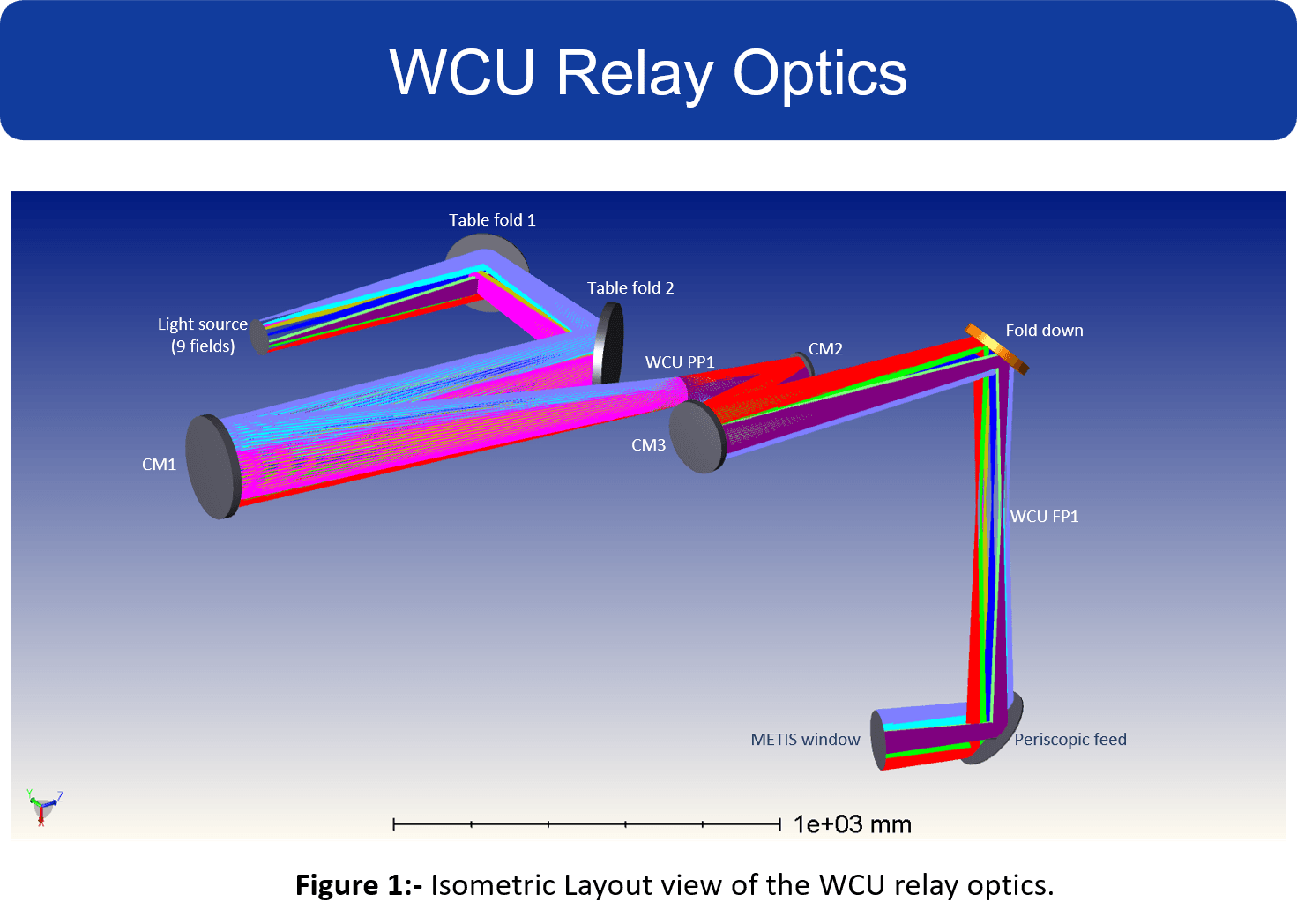

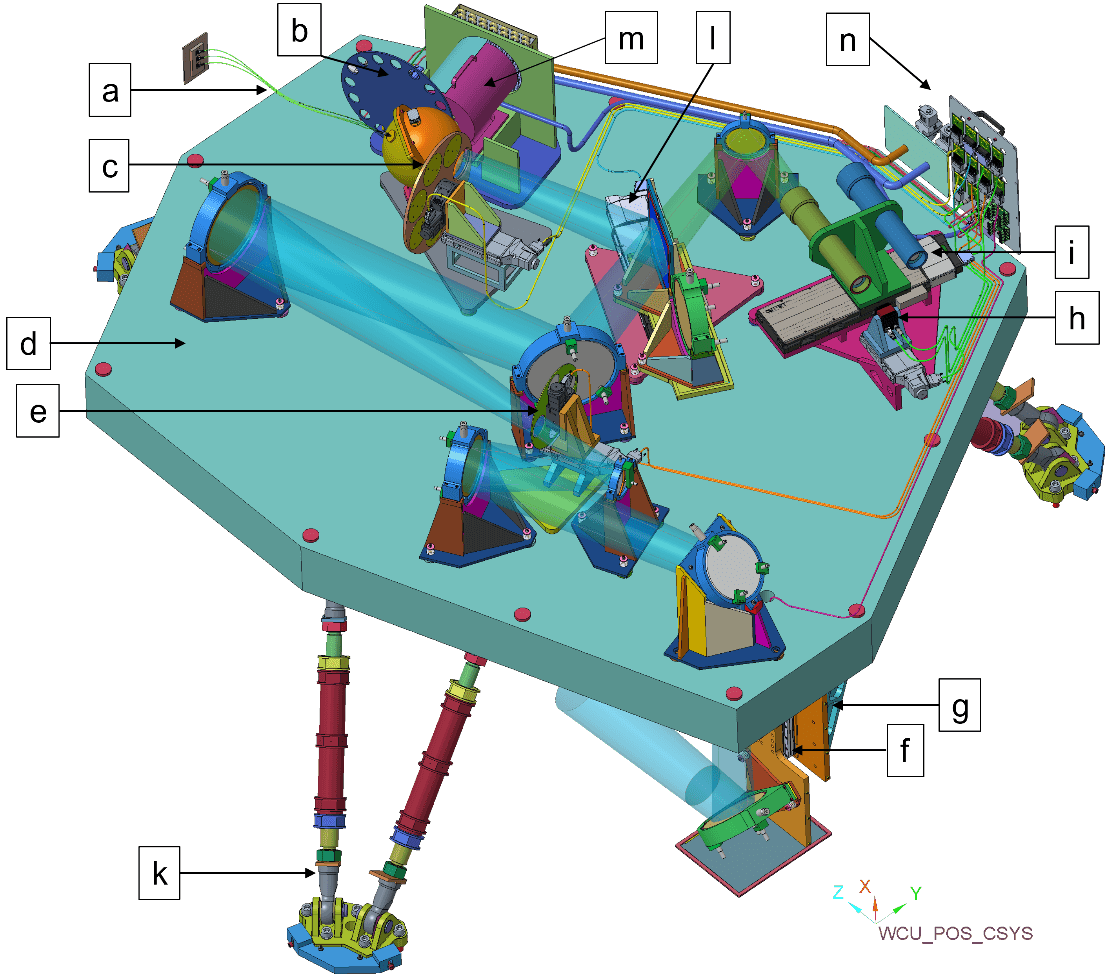

See the images below.
METIS Instrument.
Click on the Publication links below for more details: –
- Vipin Kumar, Yigit Dallilar, Michael Wiest, Lucas Labadie, Dennis Dolkens, Eduard Muslimov, Dirk Lesman, Rudolf Le Poole, Remko Stuik, Adrian Glauser, Bernhard Brandl, Roy van Boekel, Wolfgang Brandner, Tarun Sharma, Christian Straubmeier and Felix Bettonvil “Final optical design of relay optics and alignment optics of the Warm Calibration Unit in METIS/ELT: analysis, performances, and the procurement of the optics”, Proc. SPIE 13096, Ground-based and Airborne Instrumentation for Astronomy X, 1309656 (18 July 2024).
- T. Sharma, M. Rutowska, M. Wiest, S. Graf, L. Labadie, C. Straubmeier, A. Eckart, S. Todd, T. Ag´ocs, R. Stuik, B. Brandl, and F. Bettonvil “Optical
design, analysis, and performances of the infrared and visible channels of the warm calibration unit in METIS/ELT”, Proc. SPIE 12184, Ground-based and Airborne Instrumentation for Astronomy IX, 121843L (29 August 2022). - Monika Rutowska, Tarun Kumar Sharma, Michael Wiest, Sabine Graf, Lucas Labadie, Christian Straubmeier, Andreas Eckart, Stephen Todd, Tibor Ag´ocs, Gert Raskin, Jan Goris, Marchel Gerbers, Leonard Burtscher, Roy van Boekel, Adrian Glauser, Jeffrey Lynn, Bernhard Brandl, and Felix Bettonvil “Warm calibration unit of the mid-infrared ELT instrument METIS: overview and current status towards FDR”, Proc. SPIE 12184, Ground-based and Airborne Instrumentation for Astronomy IX, 121843M (29 August 2022).
- Monika Rutowska, Tarun Sharma, Michael Wiest, Sabine Graf, Christian Straubmeier, Steffen Rost, Lucas Labadie, Andreas Eckart, Leonard Burtscher, Tibor Ag´ocs, Dirk Lesman, Remko Stuik, Adrian Glauser, Bernhard Brandl, and Felix Bettonvil ”Warm calibration unit of the mid-infrared E-ELT instrument METIS: overview and current status of the project”, Proc. SPIE 11447, Ground-based and Airborne Instrumentation for Astronomy VIII, 114472T (13 December 2020).
